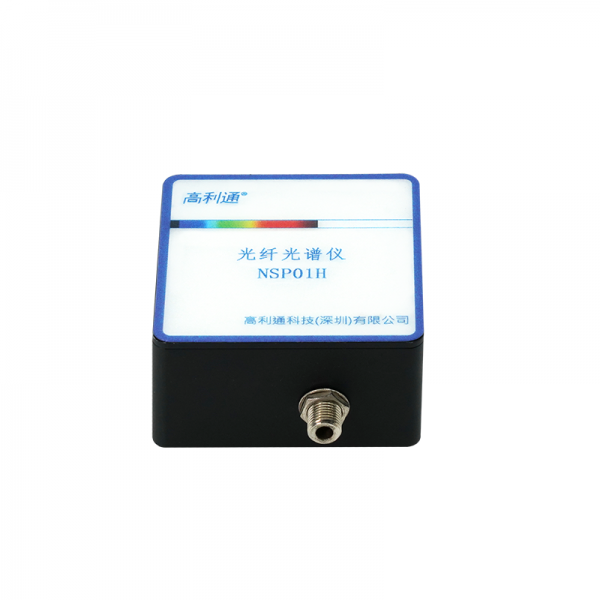

Mini Fiber Spectrometers NSP01H
-
●Czerny-Turner optical structure with a grating, CMOS light detector and SMA905 fiber connector.
●Connects to a computer through USB, RS232 or other connector for industrial control, controlled and powered by the computer.
●Unique software features, automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement.
●Spectral measurements including radiation, transmittance, absorbance and reflectivity.
●Two output data formats, conventional Excel two-column format and square format, the latter can be used to check spectral data easily which is a unique design developed by us.
●The selected spectral data on the spectral curve are marked using different colors, including the cursors and the area boundary lines, allowing users to easily find data in a large number of spectral data.
●Cursors are used to find the wavelengths. The spectral width is found by moving the two boundary lines.
●Software logging allows the user to record experiment’s content such as the material analyzed, the operator and time etc.
●Color bars help users understand the corresponding wavelengths of the spectrum.
●Interfaces and data formats for industrial control, such as Linux, ARM and PLC etc.
●NSP01H fiber spectrometer includes UV bands spectrometer, VIS band spectrometer and NIR band spectrometer.
-
●Excellent Consistency of mass production for industrial applications
●Excellent consistency of thermal stability and vibration resistance
●Compact size and sleek appearance.
-
Items Specifications Remarks Fiber Connector SMA 905 Slit 10, 25, 50, 100µm Wavelength Range 190-380nm Depends on the grating used Spectral Resolution FWHM 0.6nm@Hg253nm@10μm slit Depends on wavelengths and slit Stray Light 0.3%@253nm Depends on wavelengths Light Detector High end detector Pixel Number 1024 Pixel Size 14μmx200μm Detector Collecting Lens Yes SNR 700:1 Room temperature ADC Resolution 16 bits Integration Time 1ms-15min Depends on detector used Data Output Count vs. wavelength or pixel Power Supply DC5V/500mA Trigger Mode Trigger in or out with TTL Optional upon request Communication USB or RS232 Operation Software SPEC-GLA600 Dimensions 50mmx50mmx28mm Weight 110g Mounting 4xM3 screw holes on the bottom Operating Temperature -10-50C° Storage Temperature -20-70℃
-
●Environmental inspection: inspection of water quality etc.
●Chemical industry
●Optical coating inspection
●Glass and transparent materials inspection
●Measuring light sources
●R&D in science and technology
●Customization
